FOGGER XL 175 (P)
XL175(P)
Characteristics:

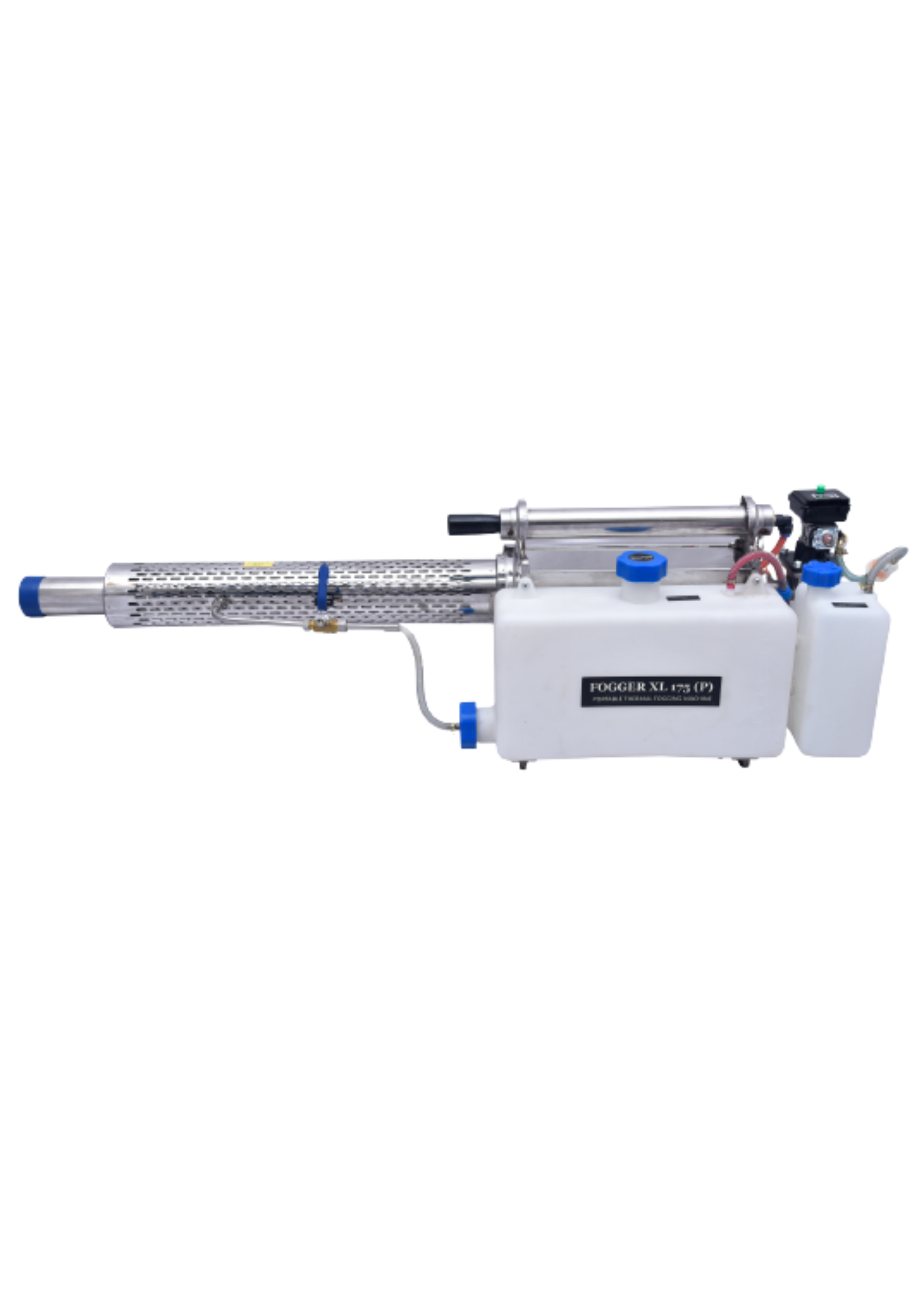

Fogger XL 175 (P) is Portable thermal fogging machine, based on thermal aerosol
fog, petroleum based resonate pulse principle, generally called as pulse jet based
thermal fogging machine, with petal valve based carburator engine tube.
Easily, effectively and economically dispenses oil based insecticides, fungicides, germicides, disinfectant for mosquito management, disinfection and odour control.
Advantages :
* Ergonomic tank designed to fit to the operator's body.
* Greatest performance-to-weight ratio of any machine available.
* Large easy-to-remove tank caps.
* Standard with 6/12V DC "buzzer" ignition system with integrated switch.
* Patented Stainless Steel engine and starting system provides quick starting and superior performance.
* Non-pressurised fuel tank system provides quick starting and superior performance.
Areas of Applications :
For its size, no other machine can surpass the Fogger Xl 175 application capacity or its speed in completing difficult chemical application job such as mosquito management in villages, towns, cities, warehouses, factories, food processing plants, greenhouses, parks, cattle barns, swine/poultry houses, grain mills, shopping centers, schools, restaurants, hotels.
Technical Specifications:
| Name | Portable Thermal Fogging Machine. |
| Type of Machine | Thermal aerosol fog, resonate pulse principal |
| Performance of engine tube | 17.5 kw/hr. / 23.80 Hp/Hr / 15034 kacl/hr |
| Starting of Machine | Electric Start with Manual Pump Backup |
| Fuel Consumption (LPH) | 1.50 Litre per hour |
| Fuel Tank Pressure | Non Pressurized Tank. |
| Fuel Tank material | Stainless Steel |
| Formulation Output | 0 - 35 Litre per hour |
| Formulation Tank material | Stainless Steel |
| Power Source | 6 /12 V Gel Battery |
| Ignition Source | Buzzer Coil |
| Fog particle size | 0.5 to 25 Microns |
| Empty Weight | 8.0 kg |
| Dimensions | 107 x 27 x 35 cm |
| Warranty | 1 year warranty. |
